Smappee EV Wall Business – Untethered Smart EV Charger

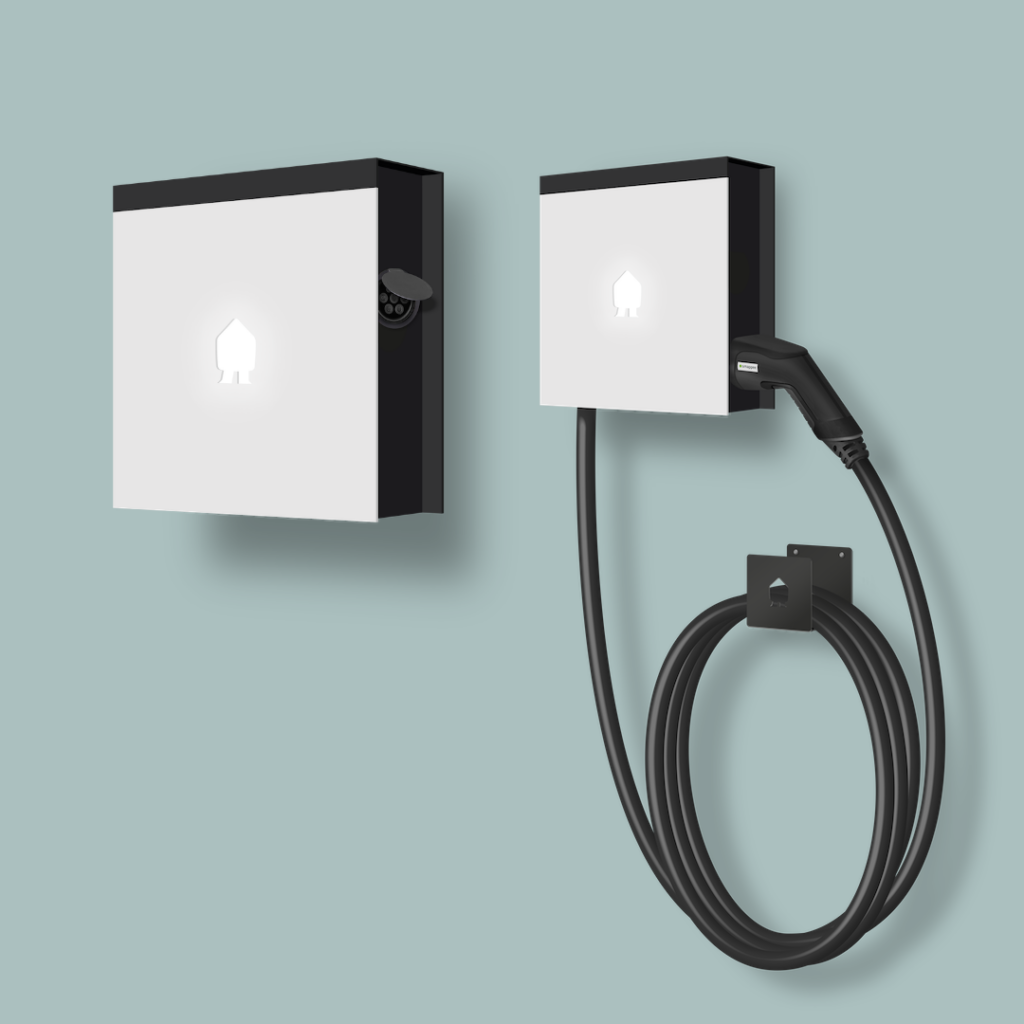

The EV Wall Business works with single-phase 240V AC (7.4kW) or three-phase 415V AC (22kW) output. The charger can be ordered with a Type 2 socket or 8m lead with Type 2 plug.

The Smappee EV Wall Business is easy to install with simple cable configuration and installation wizard. The integrated LED lighting indicates charging status and provides (programmable) ambient lighting when not in use.

With an integrated MID power meter the unit can monitor charging consumption and provides detailed consumption and charging session data via the Smappee smartphone app and online dashboard.

By adding a Smappee Infinity system to monitor the grid, EV DB, and even sub-circuits, multiple overload protection setpoints can be added. This allows for one, or multiple chargers to dynamically adjust their output to ensure the overload set point is not reached (also referred to as Dynamic Load Balancing).

Being OCPP 1.6 J compliant these chargers can be configured to operate with a third party billing platform. Charging sessions can be started and stopped via plug & charge, RFID, smart charging schedules, and QR code for CPO services.
